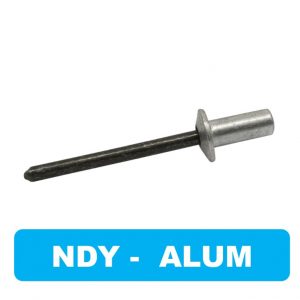

Aluminium Sealed Body Blind Rivets
NDY Sealed Rivets are high quality rivets manufactured to DIN standards in aluminium material with a steel mandrel. The sealed or closed end body type rivets are used where the secured rivet must be both air and watertight.
Packaged in convenient small box packaging (500 or 1000 rivets per box) with colour coded labels to assist identification
SIZES LISTED ARE CORE RANGE POPULAR SIZES, MANY OTHERS AVAILABLE TOO.
| SEALED BODY BLIND RIVETS - ALUMINIUM BODY /STEEL MANDREL | |||||
|---|---|---|---|---|---|
| Diameter | Length | Grip Range | Head Diameter | Head Thickness | Drill Hole |
| 3.2 | 8 | 2.0 - 3.5 | 6.5 | 1.3 | 3.3 |
| 3.2 | 9.5 | 3.5 - 5.0 | 6.5 | 1.3 | 3.3 |
| 3.2 | 11 | 5.0 - 6.5 | 6.5 | 1.3 | 3.3 |
| 4.0 | 8 | 0.5 - 3.5 | 8.0 | 1.7 | 4.1 |
| 4.0 | 9.5 | 3.5 - 5.0 | 8.0 | 1.7 | 4.1 |
| 4.0 | 11 | 5.0 - 6.5 | 8.0 | 1.7 | 4.1 |
| 4.8 | 9.5 | 3.0 - 5.0 | 9.5 | 2.0 | 4.9 |
| 4.8 | 11 | 5.0 - 6.5 | 9.5 | 2.0 | 4.9 |
| 4.8 | 13 | 6.5 - 8.0 | 9.5 | 2.0 | 4.9 |
| 4.8 | 14.5 | 8.0 - 9.5 | 9.5 | 2.0 | 4.9 |
| 4.8 | 16 | 9.5 - 11.0 | 9.5 | 2.0 | 4.9 |
Dimensions in mm. Unit of sale = Box quantity of 500 or 1000pcs.
SIZES LISTED ARE CORE RANGE POPULAR SIZES, MANY OTHERS AVAILABLE TOO.
