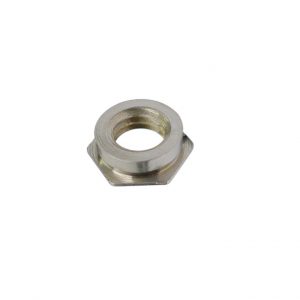

Clinch Flush Nuts

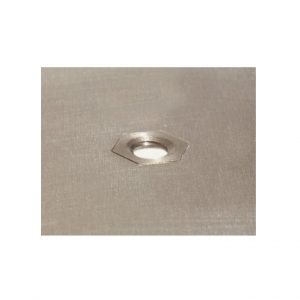

Clinch flush nuts provide a strong thread in materials too soft and ductile to tap. When installed they do not protrude on either surface of the sheet and are locked into the parent material.
TYPES: C-F = Stainless Steel
| CLINCH FLUSH NUTS, TYPE C-F , STAINLESS STEEL | |||||
|---|---|---|---|---|---|
| Thread Size - Shank Code | Suitable Sheet Thickness | Hole Diameter | Nut Body AF | Overall Thickness | Min. distance centre to edge |
| M2-1 | 1.5+ | 4.40 | 4.8 | 1.5 | 6.0 |
| M2.5-1 | 1.5-2.4 | 4.40 | 4.8 | 1.5 | 6.0 |
| M2.5-2 | 2.4+ | 4.40 | 4.8 | 2.3 | 6.0 |
| M3-1 | 1.5-2.4 | 4.40 | 4.8 | 1.5 | 6.0 |
| M3-2 | 2.4+ | 4.40 | 4.8 | 2.3 | 6.0 |
| M4-1 | 1.5-2.4 | 7.40 | 7.9 | 1.5 | 7.2 |
| M4-2 | 2.4+ | 7.40 | 7.9 | 2.3 | 7.2 |
| M5-1 | 1.5-2.4 | 7.90 | 8.7 | 1.5 | 8.0 |
| M5-2 | 2.4+ | 7.90 | 8.7 | 2.3 | 8.0 |
| M6-3 | 3.2+ | 8.75 | 9.5 | 3.1 | 8.8 |
| M6-4 | 4.0+ | 8.75 | 9.5 | 3.9 | 8.8 |
| M6-5 | 4.8+ | 8.75 | 9.5 | 4.6 | 8.8 |
Dimensions in mm. Unit of sale = 100pcs.
UNF & UNC thread sizes also available
