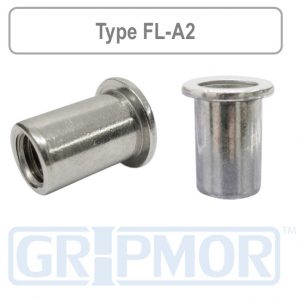

Flange Head, Plain Body Rivet Nut, A2 Stainless Steel
Gripmor flange head rivet nuts are particularly suitable for load bearing applications. The flange head acts to reinforce the hole and produces increased resistance to push out forces.
Gripmor blind rivet nuts provide strong load bearing threads and are installed from one side only, so are ideal for use in tube or box sections as well as sheet materials.
| TYPE FL-A2 GRIPMOR RIVET NUTS - FLANGE HEAD - PLAIN ROUND BODY - A2 STAINLESS STEEL | |||||||
|---|---|---|---|---|---|---|---|
| Thread Size | Grip Range | Gripmor Part No | Hole Diameter | Body Diameter +0.0/-0.15 | Head Diameter | Head Thickness | Overall Length |
| M3 | 0.5-2.0 | FL3-A2 | 5.0 | 4.9 | 8.0 | 0.8 | 9.8 |
| M4 | 0.5-2.5 | FL4-A2 | 6.0 | 5.9 | 9.0 | 1.0 | 12.0 |
| M4 | 2.5-4.0 | FL4-4.0-A2 | 6.0 | 5.9 | 9.0 | 1.0 | 13.5 |
| M5 | 0.5-3.0 | FL5-A2 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| M5 | 3.0-4.5 | FL5-4.5-A2 | 7.0 | 6.9 | 10.0 | 1.0 | 14.5 |
| M6 | 0.5-3.0 | FL6-A2 | 9.0 | 8.9 | 12.0 | 1.5 | 15.5 |
| M6 | 3.0-5.0 | FL6-5.0-A2 | 9.0 | 8.9 | 12.0 | 1.5 | 17.5 |
| M8 | 0.5-3.0 | FL8-A2 | 11.0 | 10.9 | 15.0 | 1.5 | 17.5 |
| M8 | 3.0-5.5 | FL8-5.5-A2 | 11.0 | 10.9 | 15.0 | 1.5 | 20.0 |
Please consider using the more popular knurled type 'FLK-A2' as alternative
Dimensions in mm. Unit of sale = 100 pcs, MOQ may apply
