Reduced Csk Head, Half Hex Body Rivet Nut, Steel Zinc

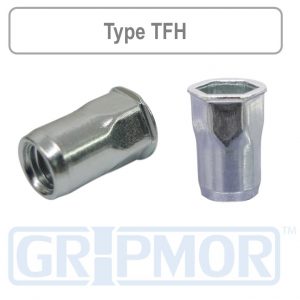

Gripmor type TFH rivet nuts have a part hex body to fit into a hexagon hole, this eliminates the potential problem of rivet nuts turning after installation. The half hex body style has excellent lead in for fast and easy installation.
The reduced countersunk or low profile head style offers near flush installation without any extra hole preparation required.
| TYPE TFH GRIPMOR RIVET NUTS - REDUCED CSK HEAD - HALF HEX BODY - STEEL ZINC PLATED | |||||||
|---|---|---|---|---|---|---|---|
| Thread Size | Grip Range | Gripmor Part No | Hole Size AF | Body Size AF +0.0/-0.15 | Head Diameter | Head Thickness | Overall Length |
| . | . | IMPERIAL HOLE | . | . | . | . | . |
| M4 | 0.5 - 2.0 | TFH4 | 6.4 | 6.35 | 7.0 | 0.4 | 10.4 |
| M5 | 0.5 - 3.0 | TFH5 | 7.2 | 7.1 | 8.1 | 0.5 | 12.0 |
| M6 | 0.5 - 3.0 | TFH6 | 9.6 | 9.5 | 10.5 | 0.5 | 14.5 |
| M8 | 0.7-3.2 | TFH8 | 10.7 | 10.5 | 11.5 | 0.6 | 16.0 |
| . | . | METRIC HOLE | . | . | . | . | . |
| M3 | 0.5-1.5 | TFH3-EURO | 5.1 | 4.9 | 6.0 | 0.5 | 9.3 |
| M3 | 1.5-2.5 | TFH3-2.5-EURO | 5.1 | 4.9 | 6.0 | 0.5 | 10.0 |
| M4 | 0.5 - 2.0 | TFH4-EURO | 6.1 | 5.9 | 7.0 | 0.5 | 12.0 |
| M5 | 0.5 - 3.0 | TFH5-EURO | 7.1 | 6.9 | 8.0 | 0.5 | 13.0 |
| M6 | 0.5 - 3.0 | TFH6-EURO | 9.1 | 8.9 | 10.0 | 0.6 | 16.0 |
| M8 | 0.7-3.0 | TFH8-EURO | 11.1 | 10.9 | 12.0 | 0.6 | 16.5 |
| M10 | 0.8-3.5 | TFH10-EURO | 13.1 | 13.0 | 14.0 | 0.8 | 20.0 |
Dimensions in mm. Unit of sale = 100 pcs
