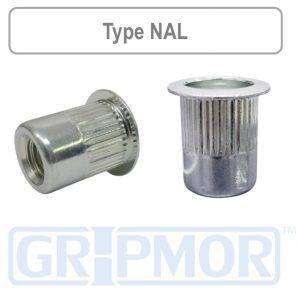

US Style, Large Thick Head, Knurled Body Rivet Nut, Steel Zinc

Gripmor NAL US Style rivet nuts have a larger hole and body diameter than other types of steel rivet nuts, which can improve the installed performance of the fastener and also makes them ideal for use in oversize holes.

Compatible with major American brand.

TYPE NAL GRIPMOR RIVET NUTS - US STYLE - LARGE THICK HEAD - KNURLED ROUND BODY - STEEL ZINC PLATED
Thread Size Grip Range Gripmor Part No Hole Diameter Body Diameter Head Diameter Head Thickness Overall Length
. . METRIC . . . . .
M4 0.5-2.0 NAL4 6.75 6.7 9.9 0.75 11.5
M4 2.0-3.3 NAL4-3.3 6.75 6.7 9.9 0.75 12.7
M5 0.5-3.3 NAL5 7.6 7.5 10.55 0.75 12.9
M5 3.3-5.7 NAL5-5.7 7.6 7.5 10.55 0.75 15.5
M6 0.7-4.2 NAL6 10.0 9.9 12.7 0.75 15.5
M6 4.2-6.6 NAL6-6.6 10.0 9.9 12.7 0.75 18.0
M8 0.7-3.8 NAL8 13.5 13.4 17.4 0.9 18.4
M8 3.8-7.9 NAL8-7.9 13.5 13.4 17.4 0.9 21.3
M10 0.7-3.8 NAL10 13.5 13.4 17.4 0.9 18.4
M10 3.8-7.9 NAL10-7.9 13.5 13.4 17.4 0.9 21.3
M12 1.6-5.1 NAL12 17.5 17.4 22.0 1.2 30.4
M12 5.1-8.9 NAL12-8.9 17.5 17.4 22.0 1.2 34.2
M12 8.9-12.7 NAL12-12.7 17.5 17.4 22.0 1.2 38.0
. . UNIFIED . . . . .
8-32 UNC 0.5-2.0 NAL8/32 6.75 6.7 9.9 0.75 11.5
8-32 UNC 2.0-3.3 NAL8/32-3.3 6.75 6.7 9.9 0.75 12.7
10-24 UNC 0.5-3.3 NAL10/24 7.6 7.5 10.55 0.75 12.9
10-24 UNC 3.3-5.7 NAL10/24-5.7 7.6 7.5 10.55 0.75 15.5
10-32 UNF 0.5-3.3 NAL10/32 7.6 7.5 10.55 0.75 12.9
10-32 UNF 3.3-5.7 NAL10/32-5.7 7.6 7.5 10.55 0.75 15.5
1/4 UNC 0.7-4.2 NAL1/4-20 10.0 9.9 12.7 0.75 15.5
1/4 UNC 4.2-6.6 NAL1/4-20-6.6 10.0 9.9 12.7 0.75 18.0
5/16 UNC 0.7-3.8 NAL5/16-18 13.5 13.4 17.4 0.9 18.4
5/16 UNC 3.8-7.9 NAL5/16-7.9 13.5 13.4 17.4 0.9 21.3
3/8 UNC 0.7-3.8 NAL3/8-16 13.5 13.4 17.4 0.9 18.4
3/8 UNC 3.8-7.9 NAL3/8-16-7.9 13.5 13.4 17.4 0.9 21.3
1/2 UNC 1.6-5.1 NAL1/2-13 17.5 17.4 22.0 1.2 30.4
1/2 UNC 5.1-8.9 NAL1/2-13-8.9 17.5 17.4 22.0 1.2 34.2
1/2 UNC 8.9-12.7 NAL1/2-13-12.7 17.5 17.4 22.0 1.2 38.0

Dimensions in mm. Unit of sale = 100 pcs
